There are four types of timers.

The functions are different for each style, please see details of each timer below.

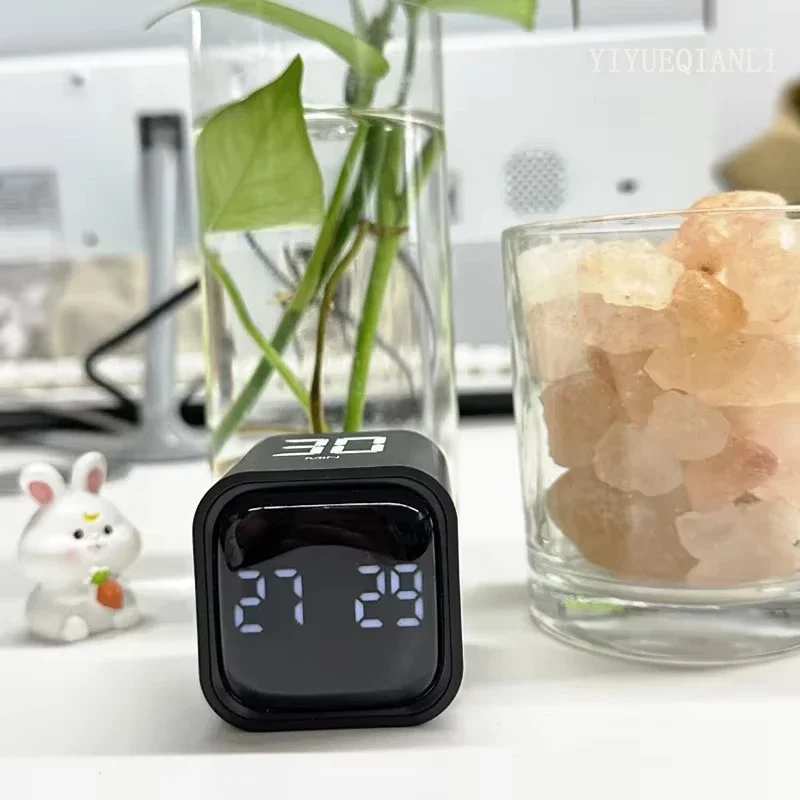

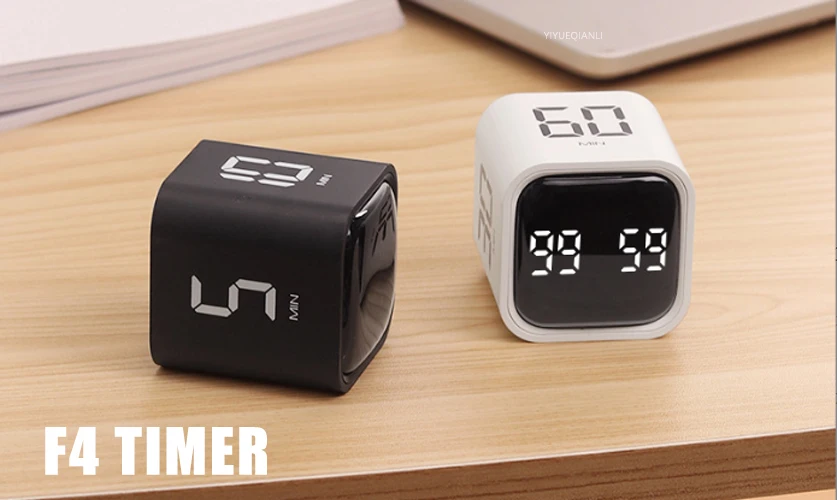

Style A

Production information

• Name: Gravity induction timer (charging version)
• Size: 44 * 44 * 46mm
• Battery capacity: 500mAh
• Working temperature: 0 ° C-50 ° C
• Standard power consumption:<20uA
• Sleep power consumption: ＜ 150uA
• Working current: 11mA
• Charging current: 500mA
• Volume range: Mute/vibrate, 90~100dB loud, 70~80dB low

Product operation instructions

Gravity mode:

• Turn the button to mode 1
• Flip 5-10-30-60 minutes upwards to automatically start the countdown.
• The screen will flip upwards and pause, while the opposite screen will clear to zero for timing downwards.

Manual mode:

• Move the button to mode
• Adjustable M/S button, press the middle button ST/SP to start the countdown.

Timing:

• When the display is 00:00, short press the [SP/ST] key to start the countdown.
• During the timing process, short press the [SP/ST] button to pause/start the countdown;
• In a paused state, long press the [ST/SP] key to reset to zero.

Countdown setting:

• Short press the [M/S] key to gradually increase the countdown time, long press the [M/S] key to quickly increase the countdown time. After setting, short press the [SP/ST] key to start the countdown;
• During the timing process, short press the [SP/ST] button to pause/start the countdown;
• In a paused state, long press the [SP/ST] key to reset to zero;
• After the countdown time reaches 00:00, there will be a one minute long alarm clock (the “Didi Di” LED screen will light up/the sound will stop, and the LED screen will turn off – these two prompts are grouped in a 1-second cycle – to remind you).
• Silent mode vibration reminder.
• Memory mode: After the countdown ends, briefly press the [SP/ST] button again to display the current set time. To reset to zero, press and hold the ST/SP button. Short press to cycle through the operation again.

Matters needing attention:

• If the user forgets to turn off the device, or if there is no action after 5 minutes, the product will automatically go to sleep;
• After the countdown ends, the alarm duration is 1 minute;
• After hibernation, if the shutdown gravity mode is not toggled, it can be flipped and used immediately. The manual mode can be adjusted with just one press;
• In silent mode, there is vibration feedback at the end of the timer or any operation. There is a “beep” feedback during operation in volume mode;
• If the battery level is below 10%, the screen will flash, reminding to charge. The charging process will light up with a red light, while the fully charged green light will remain on.

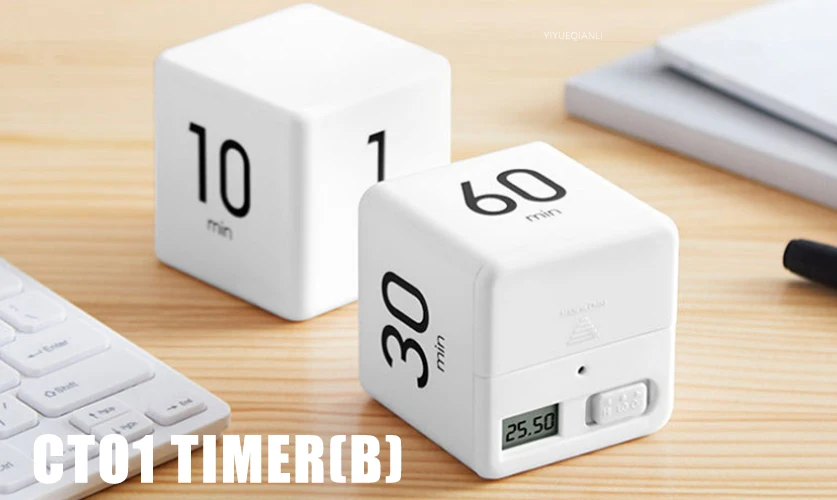

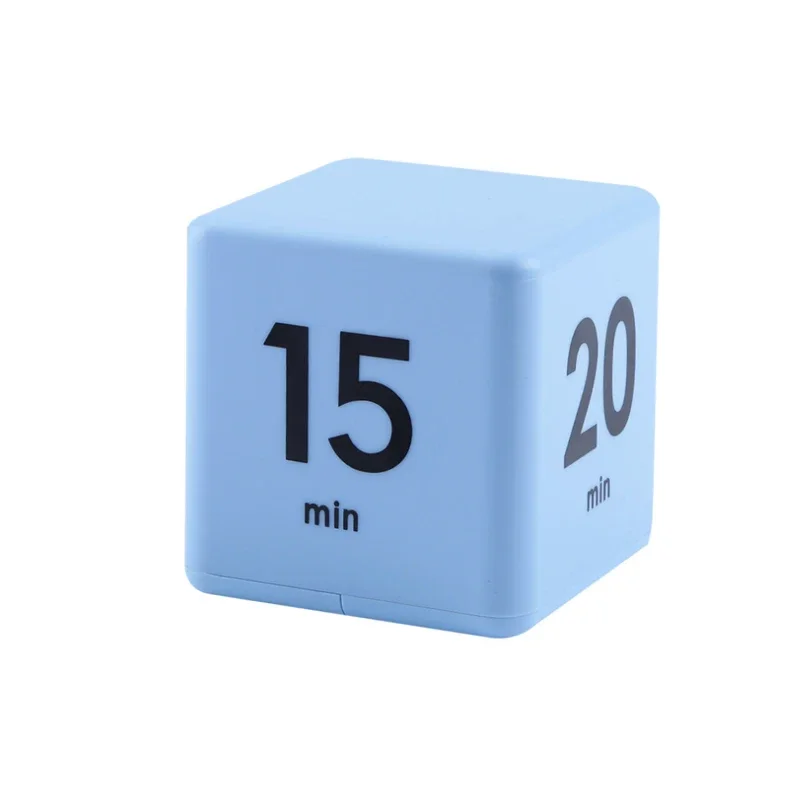

Style B

Production information

• Name: Gravity Timer (Battery version, shipped without battery)
• Size: 6.6 x 6.6 x 6.6cm
• Timing: 15-20-30-60 minutes
• Power supply mode: 2 No. 7 batteries (not included)
• Function: Automatic power-off, pause time (switch face up, pause time available)

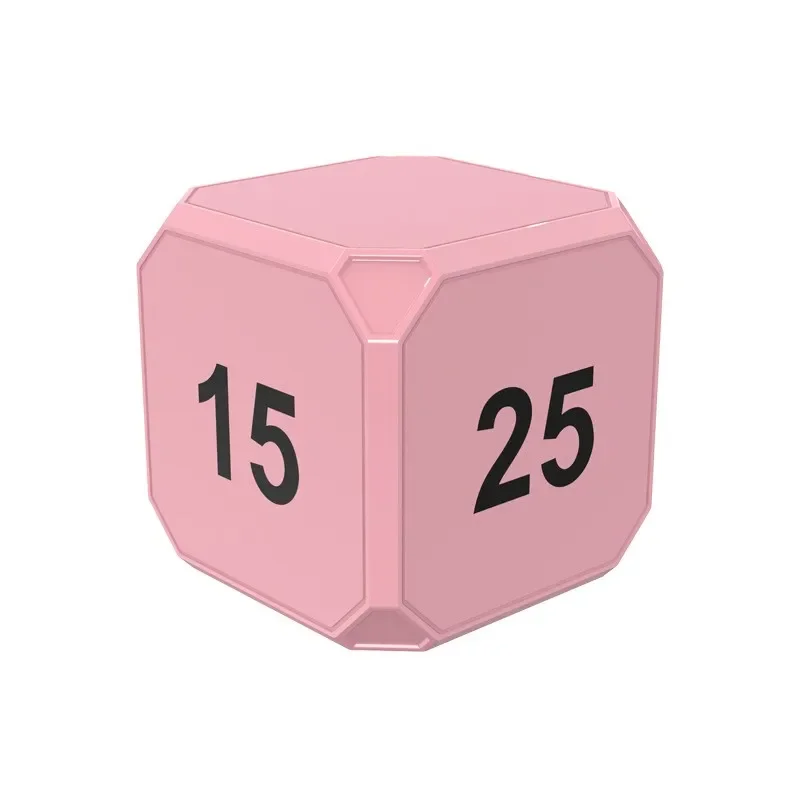

Style C

Production information

• Size: 6 x 6 x 6cm
• Timing: 5-15-25-45 minutes
• Power supply mode: 2 No. 7 batteries (not included)

Function:

• Volume adjustment (mute, bass, treble)
• Pause time: When the side with the switch faces up, the time will be paused.

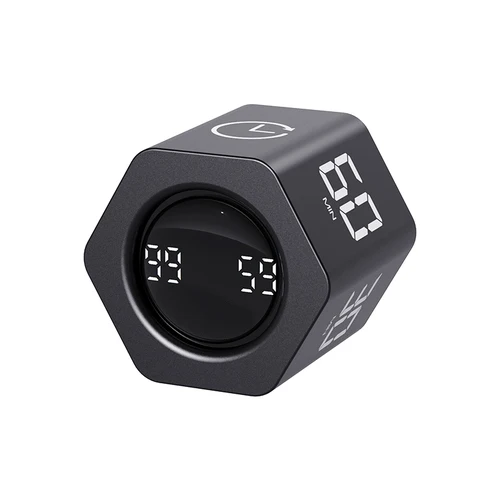

Style D

Information (Six sided gravity timer)

• Color: White/Black
• Size: 53 * 53 * 48mm
• Material: ABS
• Packaging: Box
• Timing range: Maximum timing: 99-00 minutes; Seconds 00-59
• Gravity sensing timing, preset 5 sets of timing times, user-friendly reminders, and adjustable sound levels

Parameter

• Working temperature: 0 ° C-50 ° C
• Volume settings: Ringing/Vibration/Mute
• Working current: 11.5mA
• Charging current: 500mA
• Battery capacity: 500mAh
• Time difference: plus or minus 1s/d
• Battery life: about 6-8 months.

Operating instructions

• Press and hold the button for 2 seconds to turn on and off the device. The LED will fully display, and with a beep, the device will turn on.
• Click the button to switch sound effects, default ringing vibration mute Cycle.
• Flip the timer upwards to automatically start the timer
• Flip 1-5-10-30-60 minutes upwards to automatically start the countdown
• When the screen flips up, the current time pauses, and when the screen flips down, the timer resets to zero

Charging reminder

• When the battery level is below 10%, the screen flashes to remind charging.
• The red light is on during the charging process, and the green light remains on when fully charged.
